Kystar HDR Enhancement Image enhancement01

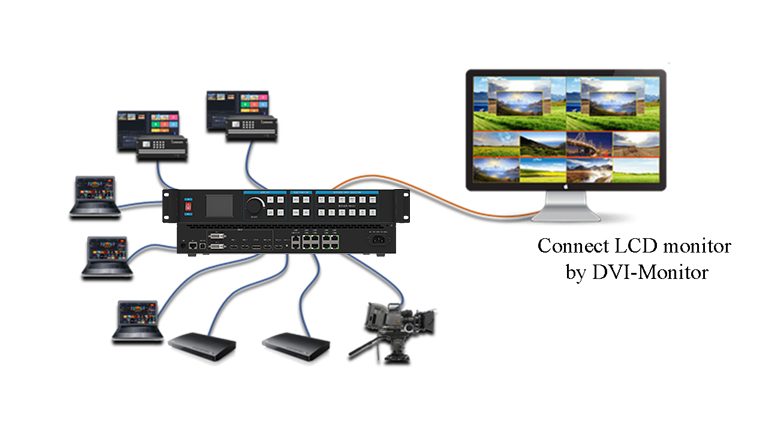

Input preview and output monitoring02
Connected to the monitor through the DVI-Monitor output port, you can preview all input signals and monitor the output signal screen at the same time.
10 Ethernet ports, 5 million pixel load03
The KLS8Pro is equipped with 10 network port outputs, supporting a maximum of 5 million pixel loading, a maximum width of 8,000 pixels, and a maximum of 4,000 pixels.
The LED display can be driven directly without an external sending controller.
Dual 4K signal input04
The KLS8Pro supports a total of 6 digital signal inputs: DP×1, DVI×4, HDMI×1, and DP and HDMI supports 3840×2160@30Hz ultra high definition resolution.

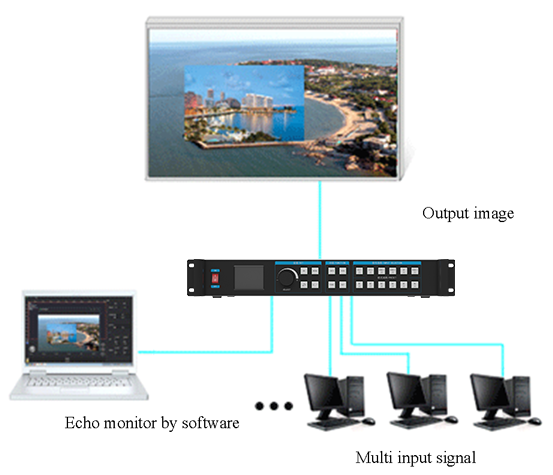

Ethernet monitoring & control in real time05
KLS8Pro supports Ethernet echo, and can be visualized through the kystar management software.

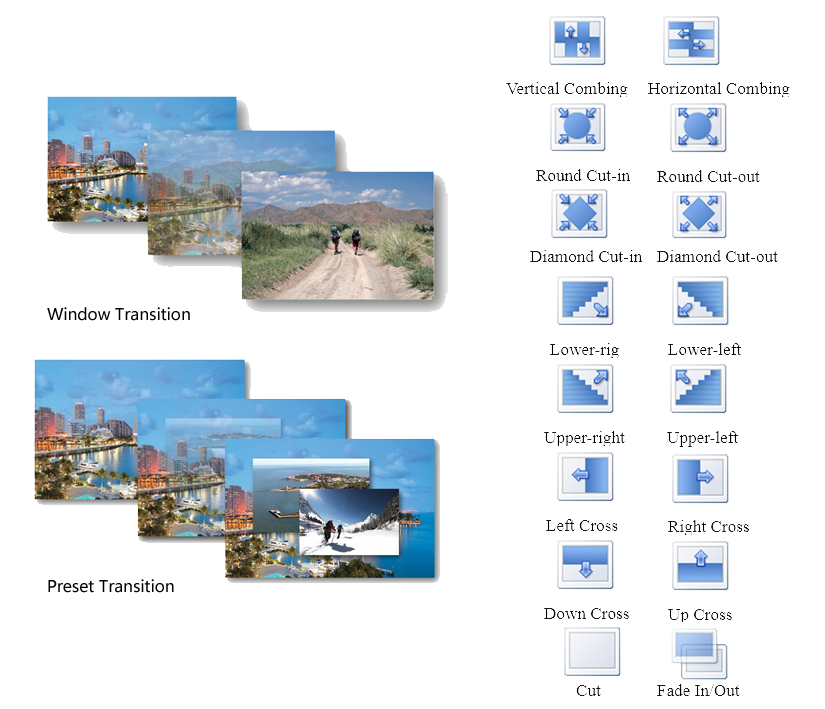

Seamless Transition With Effects06
Whether in case of a signal or a preset, KLS8Pro is capable of seamless transition, without any blackout, glimmer or delay in the process; Besides, KLS8Pro owns over ten transition effects for choice by the user, adaptable for different applications.

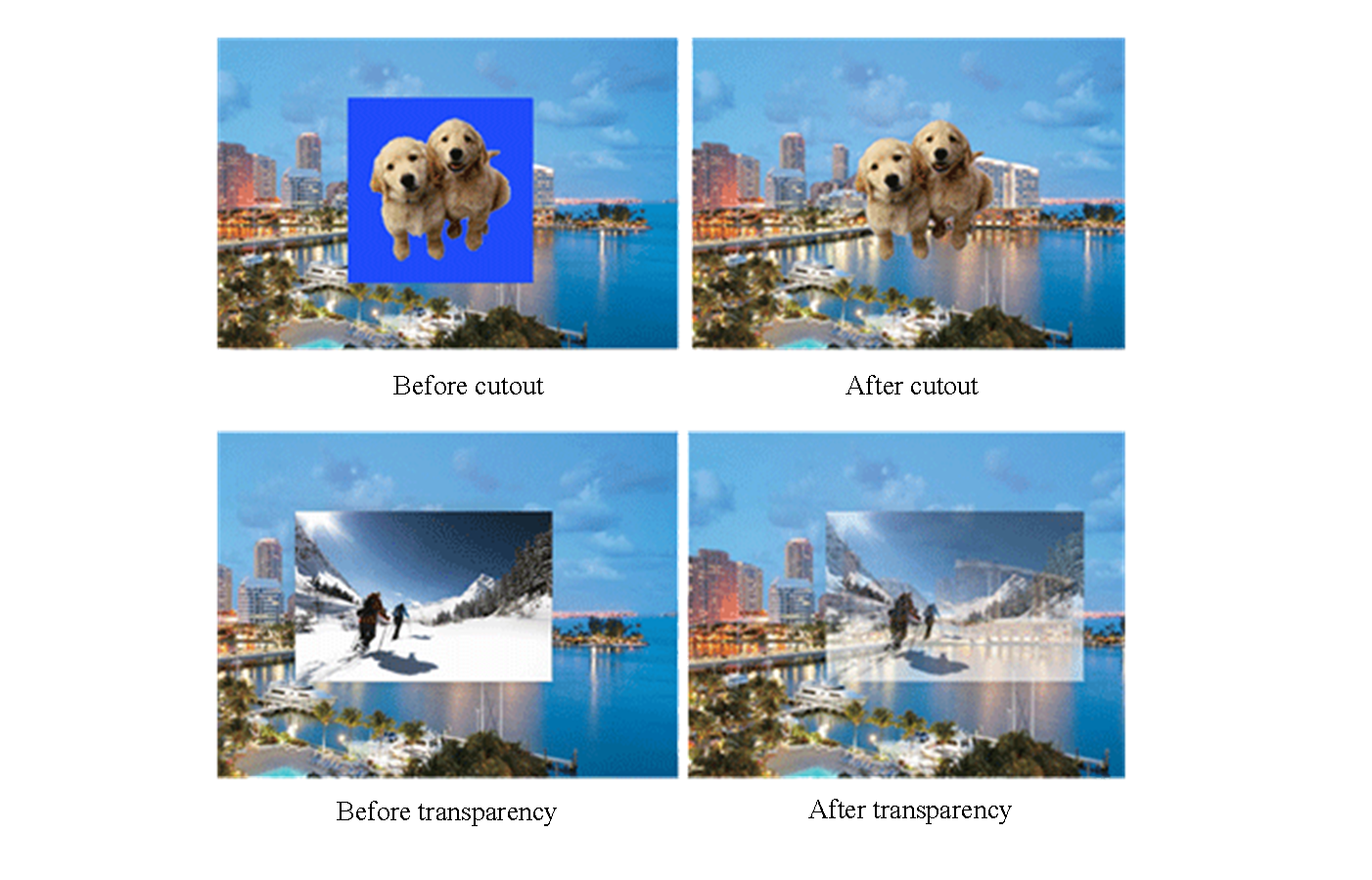

All layers of KLS8pro can realize chroma key cutout function, and support arbitrary transparency adjustment to realize various creative displays.

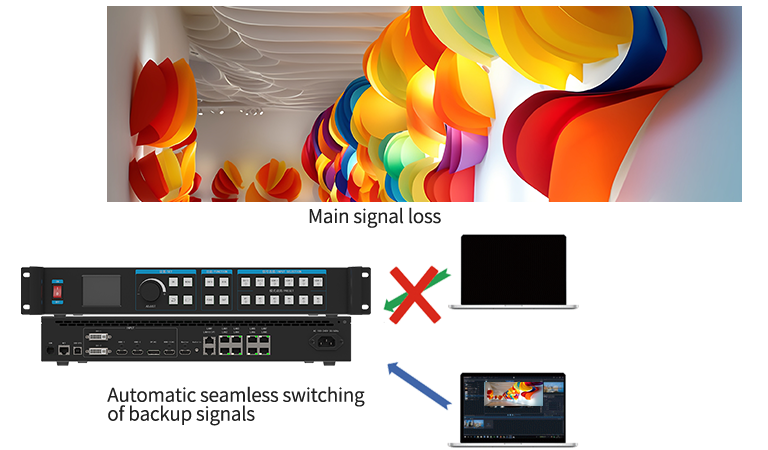

Hot Backup of Inp ut Signals08
Users can specify the backup signal for signal source . If current signal goes wrong, the system will automatically detect and call the backup signal immediately. And if the signal returns to normal, the system will transfer back to the original signal intelligently. Building parallel system with this function, the reliability of scene can be guaranteed efficiently.
Images And Text Overlay09
Henan Luoyang science and Technology MuseumHenan Luoyang science and Technology Museum
Round cake screen of exhibition hall of Kunming Planning Museum, YunnanRound cake screen of exhibition hall of Kunming Planning Museum, Yunnan
Report hall of Changchun Jiefang Road Primary SchoolReport hall of Changchun Jiefang Road Primary School
