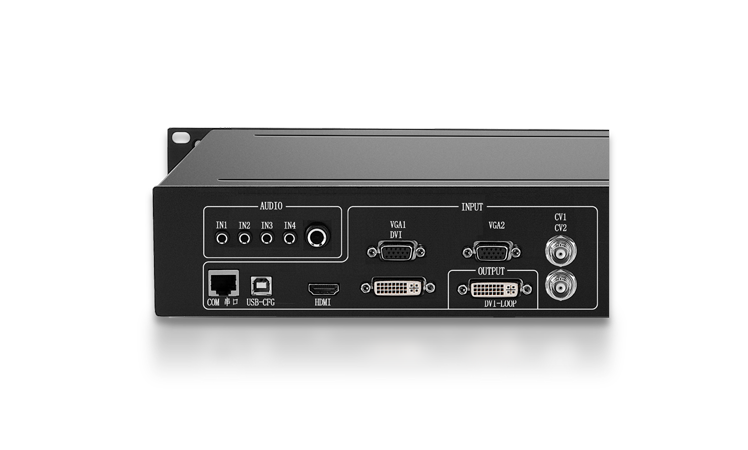

Six-channel Video Signal Input01
LS6 supports six-channel HD video signal input, including DVI×1, HDMI×1, VGA×2, CVBS×2.
At the same time ,LS6 support four audio inputs and one audio output .It supports video and audio synchronous switching.
(In addition, HDMI inputs support audio signal)

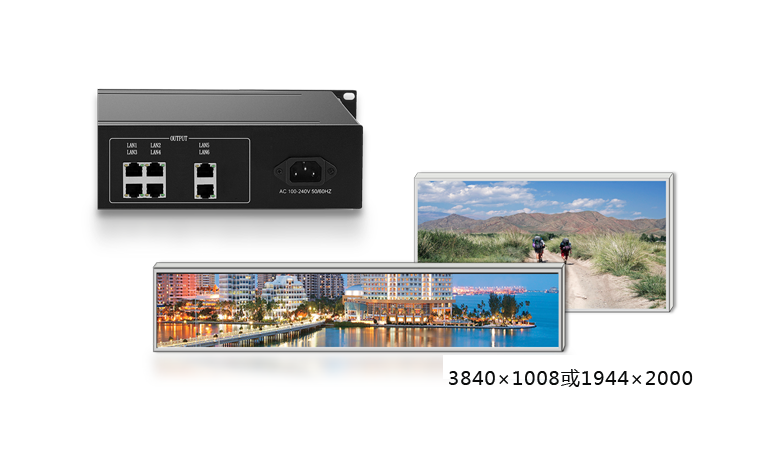

Four Ethernet Ports With 3.9 Million Pixels02
LS6 is equipped with six Ethernet port outputs, the maximum resolution is up to 3.9 million pixels. The maximum horizontal resolution is 3840 pixels , and maximum vertical resolution is 2000 pixels .
Multi-machine Cascade Splicing03
LS6 supports frame synchronization technology, multiple machines can work together by using DVI-Loop interface and realize seamless splicing to control high resolution screens.
Seamless Switching With Fade-in and Fade-out04
LS6 supports fade-in and fade-out signal switching, without blank screen during the process.
Two Windows Display05
LS6 supports dual-window display. Two signals of the same one or different ones can be arranged arbitrarily on the screen to achieve display effects such as split screen, screen overlay, etc.
Configure Screen Without Computer06
LS6 can store the project file information in advance. Users can complete the cabinet mapping of the LED screen according to the guidance through the navigation menu without a computer.
Date-read-back and Easy Recovery07
With the data-read-back function, users can quickly get the correct configuration parameters from the receiving card when replacing the controller.
With the easy recovery function, when the user changes the receiving card, LS6 can resend the configuration which stored in the device , so as to complete the system recovery without reconfiguring the parameters.
